FC Field Installable Fast Connector For FTTH Cable / Indoor Patch Cable

Brand Name : FOCABLE
Model Number : FC/UPC Fast Installable Connector
Certification : ISO Certificate, RoHS Compliant
Place of Origin : China
MOQ : 100PCS
Supply Ability : 900000PCS/Month
Packaging Details : 100PCS/Bag
Connector Outer Diameter : 3.0mm, 2.0mm, 0.9mm or drop cable 3.0*2.0mm
Connector : FC, SC, LC
Polishing Type : UPC, APC
Cores : Simplex
Fiber : SM, MM-OM1, MM-OM2, MM-OM3, MM-OM4
Material : Plastic Housing, Metal Housing
Contact Now

FC Field Installable Fast Connector For FTTH Cable and Indoor Patch Cable


Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.


The FC Field Installable Fast Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods.


The FC fast connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.


Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connectors Series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself.


Features

  • Compatible with factory-assembled conventional SC and LC

  • Easy and Quick assembly (within 2 minutes) without special tool

  • No need electric power, adhesive on site

  • Reliable assembly with assembly guide jig and fiber holder appended to connector kit

  • Applicable for both 250µm fiber and 900µm fiber

  • Available splice inspection with visible light source on site


Applications

  • Rapid repair of optical networks
  • Fiber connecting when FTTH project processing

  • Used to restore and maintenance when fiber-cut

  • Distribution in LAN area

  • Suitable for connecting with optic splice closure

  • Suitable for connecting with ODF, optical cross connection cabinet


Specifications

Insertion LossAverage ≤ 0.2dB,Max ≤ 0.4dB
Return LossUPC ≥ 40dB, 55dB typical at 25 degrees C + 5degrees
APC ≥ 55dB, 60dB typical at 25 degrees C +/- 5degrees
One-Time Assembly Yield≥ 97%
Assembly Repeatability≥ 5 times
Average Assembly Time≤ 3 minutes
Life-Time≥ 30 years
Tensile Strength≥ 30N(2.0x3.0 drop cable.)
Operation Temperature-40℃~+85℃

Field Installable Connector, Optical Fiber Fast Connector, Quick Fiber Connector, Field Installable Connector, Field Assembly Connector


Product Tags:

duplex fiber optic connector



simplex fiber optic connector


China Customized Inflatable Bumper Ball Game Bubble Adult Grass CE supplier

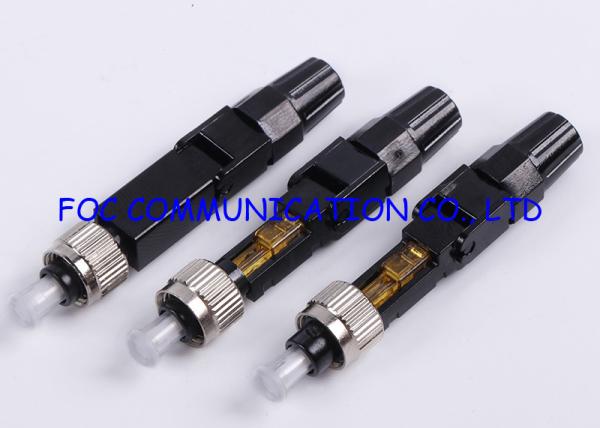

FC Field Installable Fast Connector For FTTH Cable / Indoor Patch Cable Images
